GX -100℃～-30℃-LNEYA Thermal Test Chillers

GX -100℃～-30℃

PRODUCT ADVANTAGES

· Temperature Control Accuracy ±2℃

· Heating Power 2kW~8kW

· Cooling Capacity 0.7kW~3kW @-90℃

· Volume 280L~1600L

· Unpacking Mode: Up /Side

· Power 9W~30kW

· Weight 470KG~940KG

Request A Quote

More Applications

Product Features

Industrial Refrigerator is composed of a compressor, condenser, evaporator, filter drier, expansion throttling valve of the five most series, note the amount of refrigerant inside (refrigerant), the electrical appliances (including controller) according to the requirement of the environment and control the operation of the compressor to achieve the purpose of heat transfer and refrigeration.

Mainly used in industrial cold treatment, the uniform, fine and dispersed carbides produced on the metal structure matrix structure are precipitated. The appearance of such carbides will result in a significant increase in the wear resistance and friction properties of the metal, an increase in hardness, and will directly increase the life of the wear parts. The ideal product to replace liquid nitrogen.

1.Three layers of sealing, moulded heat break layer, embedded vacuum insulation board

2. Applicable to mechanical workshop environment

3.Industrial refrigerators within – 100 ℃ and 100 m3 can be customized

4.Large plot ratio, large bearing capacity

Main Parameters

Model	GX-A028N	GX-A050N	GX-A0A10N	GY-A028N	GY-A050N	GY-A080N	GY-A0A16N
Volume	280L	500L	1000L	280L	500L	800L	1600L
Inner dimension	610600 760mm	800735 850mm	10001000 1000mm	800600 600mm	1200650 650mm	1350800 750mm	2000900 900mm
Type	（Vertical）			（Chest/Horizontal）
Capability carrying	150KG	220KG	300KG	150KG	220KG	300KG	650KG
	Designed bearing capacity is two times of the standard one, (refrigeration system is designed according to the standard capacity when target artifact weight is greater than the standard capacity, the cooling rate will decrease)

Temp. range	-100℃～-30℃ optional -100℃～60℃
Cooling capacity at -90℃	0.7kW	1 kW	2 kW	0.7kW	1 kW	2 kW	3kW
Temp. accuracy	±2℃	±2℃	±2℃	±2℃	±2℃	±2℃	±2℃
Heating power	2kW	3kW	5kW	2kW	3kW	5kW	8kW
	Nickel-chromium alloy electric heating heater, the controller has double safety protection, with independent temperature limiter protection.

Inside circulating air	1650 m³/h	2100 m³/h	2750 m³/h	2100 m³/h	2750 m³/h	3500 m³/h	6000 m³/h
	When it is open, the internal circulation fan automatically turns off. The touch screen displays open state.
Compressor	Tecumseh		Dorin	Tecumseh		Dorin
Dimension (mm)	11501150 1850	13501300 1850	15501500 2100	22001150 1150	27001200 1200	29001300 1250	37001400 1350
Power 380V 50HZ	9kW MAX	13.5kW MAX	18kW MAX	12kW MAX	16.5kW MAX	20kW MAX	30kW MAX
Weight	470kg	580kg	750kg	495kg	625kg	810kg	940kg

Cooling rate	(Ambient temperature of 25℃, no-load, from 60 ℃s to -95 ℃ about 1 hour).；cooling rate will be a little different for temperature changes.
Controller	ASET multifunctional controller

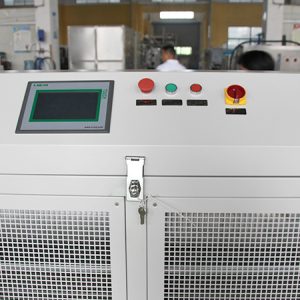

Operation panel	7-inch color touch screen, display set temperature, measured temperature.
Temp. record	Temperature curve and fault record, U-disk data export, excel format.
Compressor	Tecumseh	Dorin	Tecumseh	Dorin
Intermediate heat exchanger	KAORI Plate heat exchanger
Dry filter	Emerson
Expansion valve	Electronic expansion valve
Evaporator	Copper-tube with aluminum-fin
Cooling Type	Air-cooled with water-cooled auxiliary functions (Ensure good cooling capacity when temp. above 30℃)
Means of insulation	Polyurethane foam insulation, thermal insulation layer 125 mm, with embedded FIR boards
Safety Protection	Self-diagnosis function; Phase sequence phase failure protection; leakage protector; cooling unit overload protection; high and low pressure switch, overload relay, thermal protection device, high temperature protection and temperature fault protection.
Case material	Outside is cold rolled steel painting, internal is SUS304 wire drawing board.
Refrigerant	R404A R23 R14
Optional	High temperature reaches 150℃ and temperature accuracy is ±0.5℃；the input power will be changed （When select this model, the thickness of thermal insulation layer will be 150mm，thermal insulation material will be silicate and vacuum plate）
Optional	Temp. accuracy ±0.5℃
Optional	Cooling and heating program controlled, meet cold treatment process requirements(can set 5 programs, each program can edit 45 steps.)
Optional	Interior door, reduce cooling capacity lost when picking small workpieces (temperature below 60℃ optional)
Optional	Outside SUS304 wire drawing board case
Optional	Diameter 50mm cable hole
Optional	Electric heating vacuum glass observation window (with lighting) 200mm*300mm
Optional	Low temperature automatic defrost (can be once per hour or use manual button to defrost), ensure it can work at low temperature for long time even the door is open and close frequently）
