ZLF -45℃~+250℃
PRODUCT ADVANTAGES
· Material Temperature Control Accuracy ±1.0℃
· Heating Power 25kW~80kW
· Circulation Pump 150L/min 2.5bar~750L/min 2.5bar
· Power 2.30kW~10.5kW
· Temperature Control Reactant temperature
· Heat Exchange Area 3.5㎡~20㎡

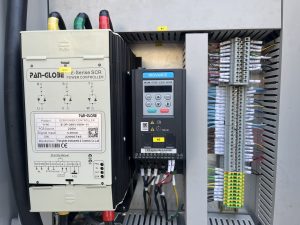

Appearance Structure
Model | ZLF-35N ZLF-35NS ZLF-35NH ZLF-35NSH | ZLF-50N ZLF-50NS ZLF-50NH ZLF-50NSH | ZLF-80N ZLF-80NS ZLF-80NH ZLF-80NSH | ZLF-125N ZLF-125NS ZLF-125NH ZLF-125NSH | ZLF-200N ZLF-200NS ZLF-200NH ZLF-200NSH |
Temp. range ℃ | -45~ 250°C (setting the max temp according to the supplier heating or cooling source) -40~135°C(The maximum temperature range can be operated by using glycol water formula.) | ||||
ZLF- N | The main cold source/or main heat source is used to regulate the flow of the system through proportional regulation system, and control the heat of the clamping of the reaction tank, and a set of heat exchanger for heating or cooling is controlled or cooled. | ||||
ZLF- NS | Besides ZLF- N function,add one set heater used to reduce high temp. | ||||
ZLF- NH | Besides ZLF- N function,add electrical heating function | ||||
ZLF- NSH | Besides ZLF- N function,add one set heater used to reduce high temp and electrical heating function | ||||
Heat exchanger area | 3.5m2 | 5m2 | 8m2 | 12.5m2 | 20m2 |
Electric heating function H | 25KW | 35KW | 50KW | 65KW | 80KW |
With “H” has heating function | |||||
Control mode | Feed forward PID + Our special dynamic control calculation,LNEYA PLC controller | ||||
Communication protocol | MODBUS RTU protocol,RS485 interface,optional Ethernet interface/R232 interface | ||||
Temp control selection | Reactor material temperature control | ||||
Temperature feedback | The temperature of three points: the inlet and outlet of heat-conducting medium, material in reactor(External temperature sensor), PT100 sensor | ||||
Process temp. feedback | Raw material process feedback:PT100 or 4~20mA or communication given Temp. feedback:PT100 | ||||
temp feedback: normal PT100 | |||||
Temperature accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
Circulation pump | 150L/min 2.5BAR | 200L/min 2.5BAR | 400L/min 2.5BAR | 500L/min 2.5BAR | 750L/min 2.5BAR |
Input and display | 7-inch color touch screen,temperature graph display | ||||
Safety protection | Self-diagnosis function;freezer overload protection;high pressure switch;overload relay;thermal protection device;liquid low level protection;high temp. Protection and temp. fault protection. | ||||
Perform valve piece | Electric proportional control valve, control signal 4~20mA. | ||||
Piping material | SUS304 | ||||
Connection size | DN40 | DN40 | DN-50 | DN-65 | DN-80 |
Dimension cm | 150*120*185 | 180*120*210 | 180*120*210 | 225*120*240 | 225*120*240 |
Power AC380V50HZ | 2.3kw(max) | 3.5kw(max) | 4.5kw(max) | 8kw(max) | 10.5kw(max) |
With H power AC380V 50HZ | 27.3kw(max) | 38.5kw(max) | 54.5kw(max) | 73kw(max) | 90.5kw(max) |
Case material | Cold-rolled sheet spraying (standard color 7035) |
Mainly used to provide cold and heat sources for reaction kettles, and is widely used in heating, cooling, heat preservation, crystallization, concentration, drying and other reactions in medicine, fine chemical industry and other fields.
