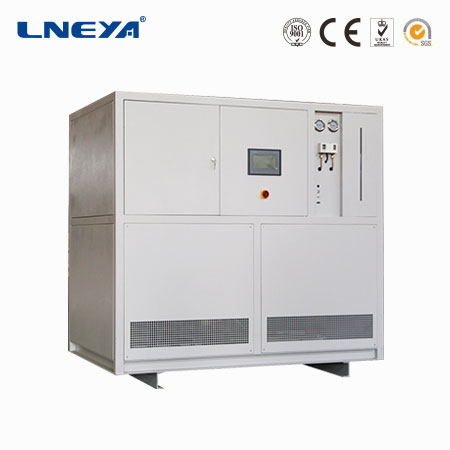

LC -25℃~-5℃-LNEYA Thermal Test Chillers

LC -25℃~-5℃

PRODUCT ADVANTAGES

· Circulation Pump max 6.6m³/h 2.5br ~25m³/h 2.5bar

· Cooling Capacity 12kW~360kW

· Power 12kW~247kW

· Weight 800KG~5000KG

· Refrigerant R-404A/R507C

Request A Quote

More Applications

Appearance Structure

Main Parameters

Model	LC-12W	LC-20W	LC-30W	LC-40W	LC-60W	LC-80W	LC-120W	LC-180W	LC-240W	LC-360W
Temperature Range	-25°C ~ -5°C
Cooling Capacity At -20°C	12kw	20kw	30kw	40kw	60kw	80kw	120kw	180kw	240kw	360kw
Cooling Capacity At -20°C	10320Kcal/h	17200Kcal/h	25800Kcal/h	34400Kcal/h	51600Kcal/h	68800Kcal/h	103200Kcal/h	154800Kcal/h	206400Kcal/h	309600Kcal/h
Circulation Pump Info	6.6m³/h	9m³/h	15m³/h	15m³/h	25m³/h	25m³/h	25m³/h	/	/	/
Circulation Pump Info	1.2bar	1.2bar	2.5bar	2.5bar	2.5bar	2.5bar	2.5bar	/	/	/
Inlet&outlet connection size	DN-25 PN-10	DN-25 PN-10	DN-32 PN-10	DN-32 PN-10	DN-50 PN-10	DN-50 PN-10	DN-50 PN-10	DN-50 PN-10	DN-50 PN-10	DN-65 PN-10
Cooling Water at 30 degree	8m³/h	10m³/h	14m³/h	20m³/h	25m³/h	30m³/h	38m³/h	55m³/h	70m³/h	100m³/h
Expansion tank(standard)	100L	175L	250L	350L	500L	600L	750L	/	/	/
Compressor	Emerson Copeland、Dorin semi-closed compressor、Carlyle					Carlyle、HANBELL、Fusheng、Bitzer screw compressor
Evaporator	plate heat exchanger
Throttling mode	Electronic expansion valve
Refrigerant	R404A/R507C, optional: R448A
Secondary refrigerant	Non-corrosive liquid, aqueous ethanol solution, aqueous glycol solution, heat transfer oil, etc.
Safety Protection	High pressure protect; water supply cut-off protection; over-current protection; leakage protection; sequential and phase failure protection; High temperature protection; Sensor Failure protection; Liquid low level protection etc. multi-safety protection
Level Indicator	Adopt glass liquid level indication
Piping material	Expansion tank, cold storage tank and circulation pipeline are all made of SUS304
Case material	Channel steel + square tube + cold rolled plate sealing plate Spray7035
Dimension cm	100150185	100150185	200145205	200145205	250145225	250145225	300160225	350160245	400160245	500200260
Power	12kW	17kW	26kW	38kW	50kW	63kW	86kW	127kW	167kW	247kW
dB	within 75 dB		within 80 dB			within 90 dB
Weight （kg）	800	950	1100	1350	1500	1800	2400	3100	3600	5000
Optional	External touch screen controller, communication line distance 10m
Optional	Explosion-proof touch screen control system (ExdellBT4) communication line distance within 15m

Product Features

Temperature range -150C-~5C, can meet different temperatures;
Adopt secondary subcooling technology, rapid cooling and low cooling temperature;
Adopt a full set of imported cold controls (DANFOSS pressure controller, balance valve, expansion valve, solenoid valve, filter drier, Emerson oil separator, ALCO sight glass, check valve, etc.);
Cooling water circuit of the unit adopts an intermediate heat exchanger, which significantly improves the reliability and safety of the system; the control precision is high;
Siemens PLC S7-200/300, LNEYA touch key screen display temperature curve display, temperature record U disk export, fault alarm record function;
The whole machine is installed, and the system has been tested in the factory, and the user only needs to install the refrigerant pipeline and cooling water pipeline to run;
Factory Test: Each refrigeration unit is tested at the factory with load for not less than 12 hours.

Accessories Details

Product Applications

Single-fluid cryogenic chiller, the cooling temperature range is from -150°C to -5°C, the cooling speed is fast, safe and reliable, and it is used for rapid cooling of liquids. Widely used in right chemical, medical, pharmaceutical, biochemical, freeze-drying, pharmaceutical, military and other high-tech industries.
